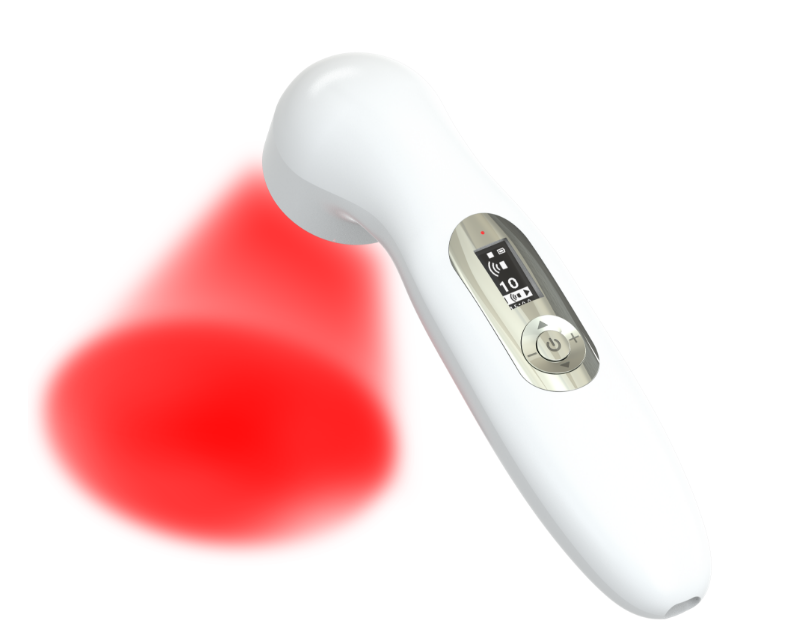

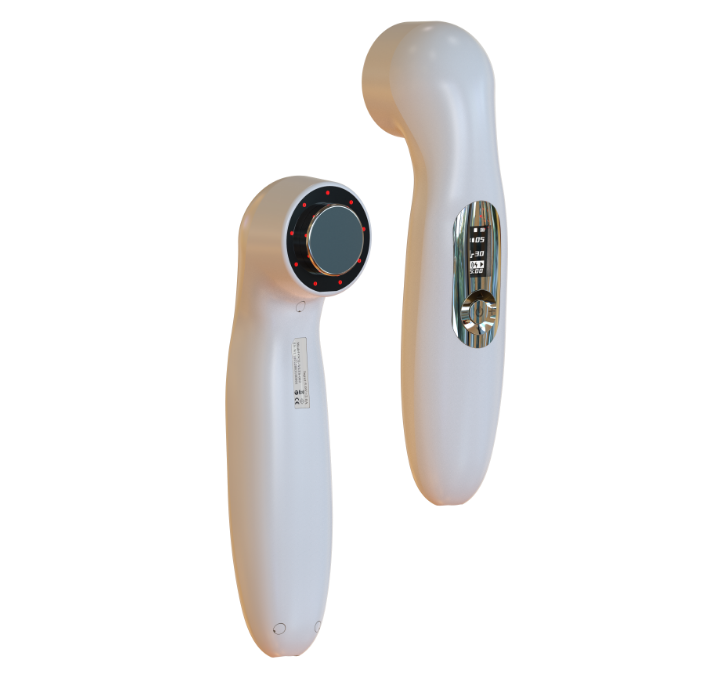

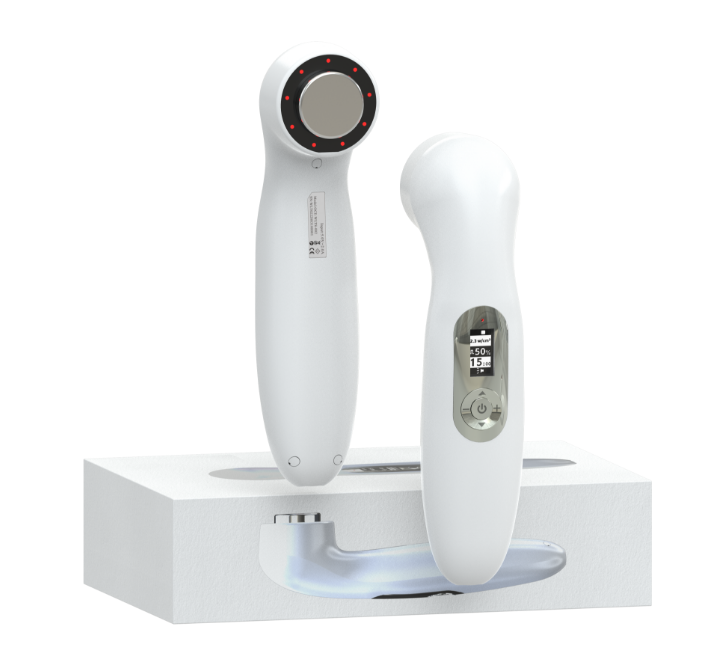

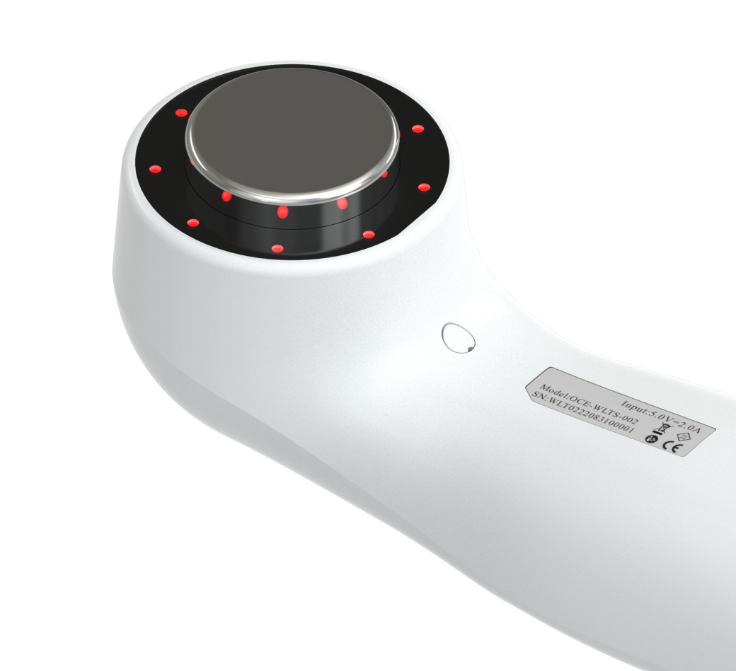

Ultrasonic physiotherapy equipment（Infrared combined）uses ultrasonic energy to produce warm, physicochemical and vibration effects in the human body. It has the characteristics of strong directionality, concentrated energy and strong penetrating power. It applies ultrasonic energy to human lesions and enters human muscles, bone, deep tissue, non-invasive, painless, non-invasive way to reach the lesions, improve the quality of treatment, treatment of certain diseases.

  Indications

* Pain Relief

* Promotes Blood Circulation

* Accelerates Wound Healing

* Enhances Functional Mobility

* Reduces Inflammation

  Ultrasonic Technical Specifications

Acoustic working frequency: 1 M Hz±10%

Max output power: 5W

Waveform: Continuous / Pulsed

Max Effective intensity: 1.25W/cm2

Duty factor: 90%,80%,70%,60%,50%,40%,30%,20%,10%

Effective radiation area: 4cm2± 20%

Pulse frequency: 100Hz

Treatment Time: Freely adjustable, 30 minutes

Beam inhomogeneity ratio: RBN＜8

Beam type: Collimated

Rated output power:

  Infrared Technical Specifications

Infrared light: 810nm：6 pcs & 610 nm：3pcs

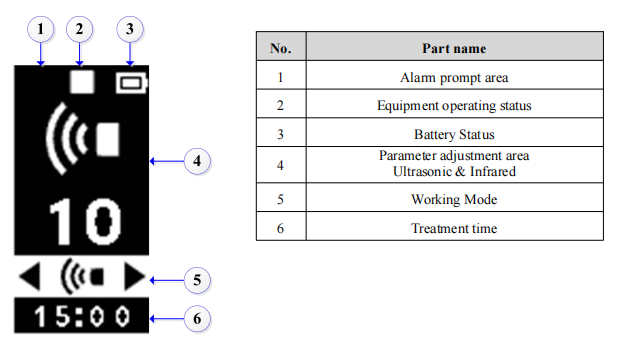

  OLED Display
