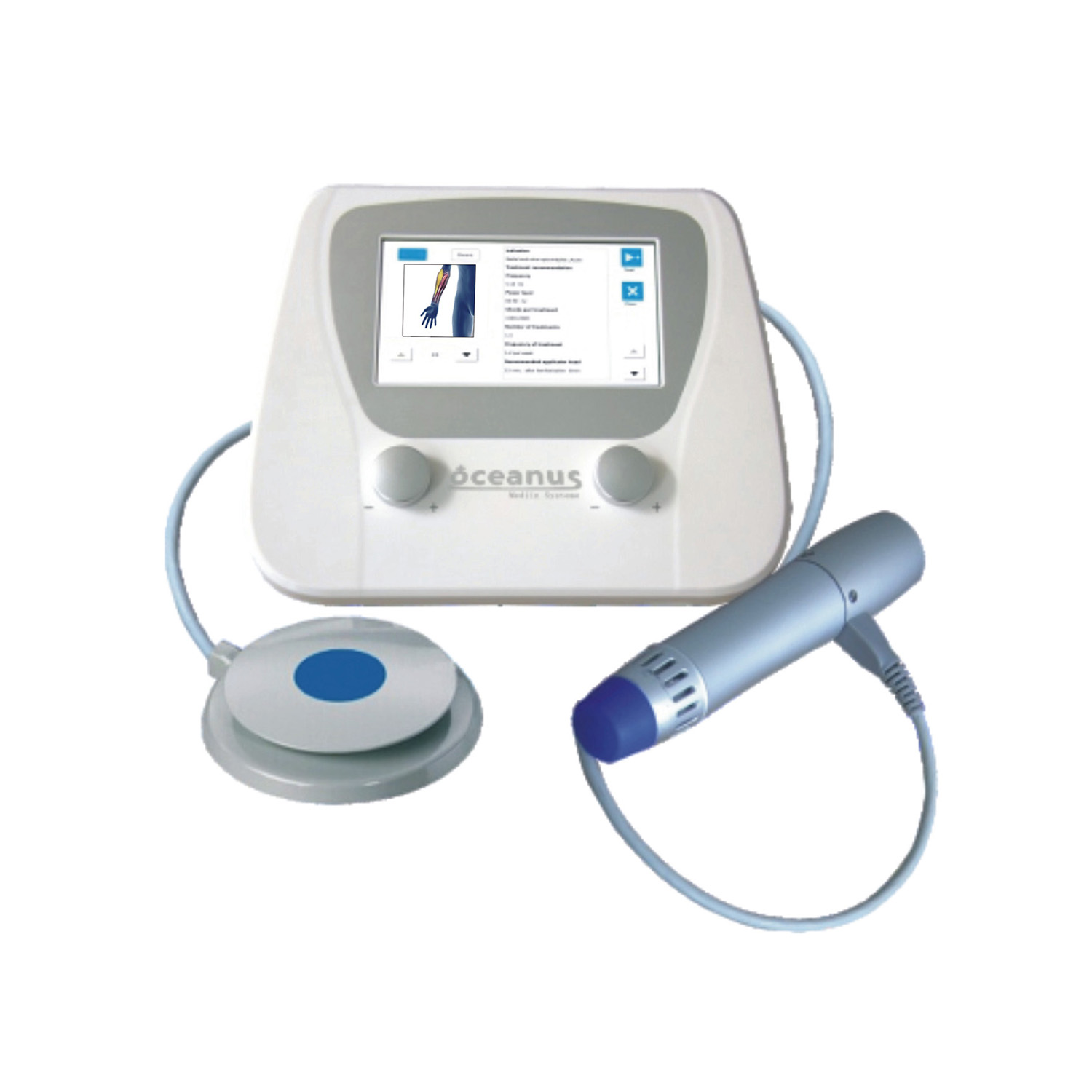

System Features & Benefits
7.0'' color touch screen
“Plug & play” system
Multi-preset treatment protocols
User friendly and reliable
No air compressor,low maintenance cost
Easy of use

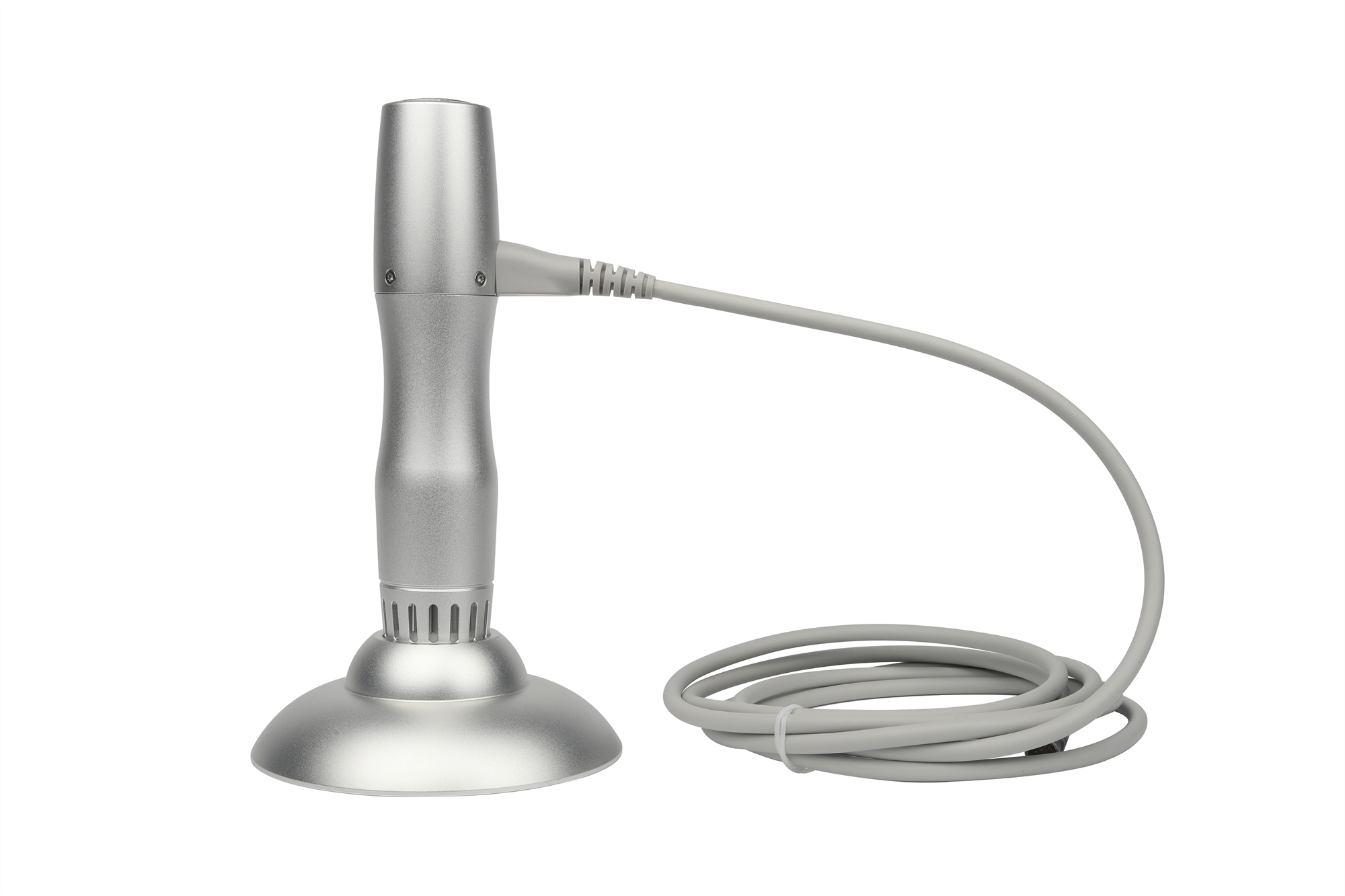

Technical Principle The hand piece contains a projectile that is accelerated through the electromagnetic transfer of kinetic energy. This kinetic energy is the transformed into impact energy in the applicator head. The impact energy delivered from the applicator head results in radial pulses in the target tissue.
Features •7.0'' Color Touch Screen •Plug & play” system •Multi-preset treatment protocols •User friendly and reliable •No air compressor,low maintenance cost •Easy of use

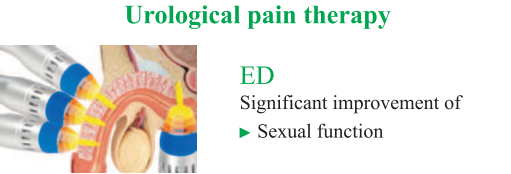

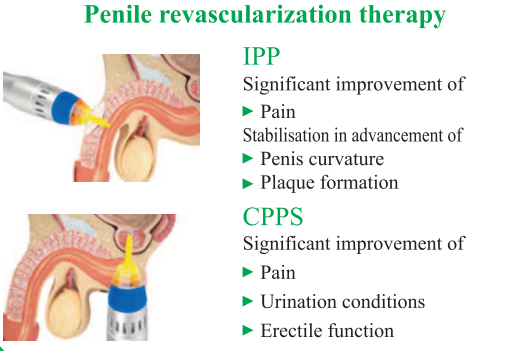

Indications • Physiotherapy • Rehabilitation • Orthopedics • Sports medicine • Aesthetic medicine • Treatment for urological pain therapy and erectile dysfunction

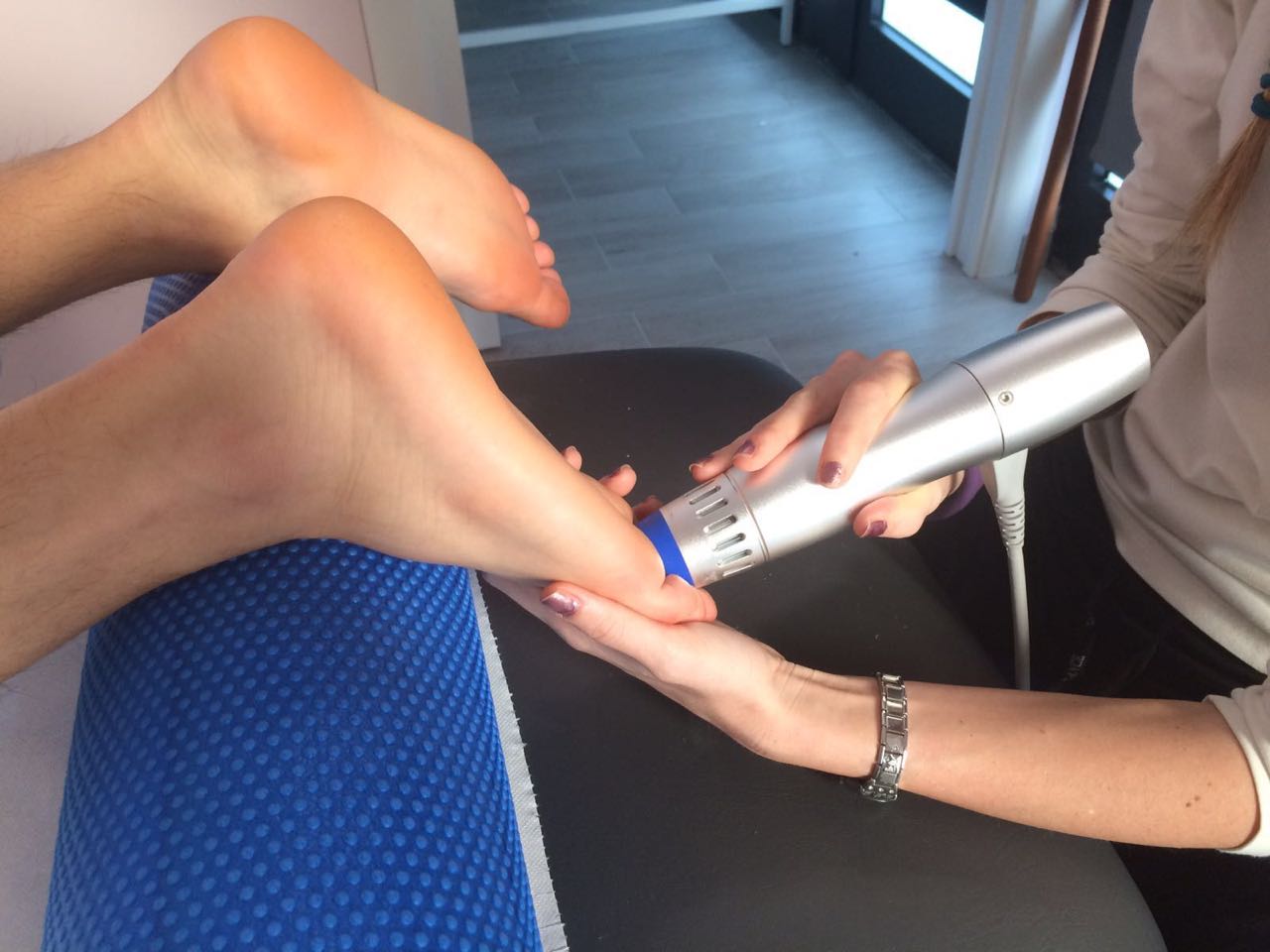

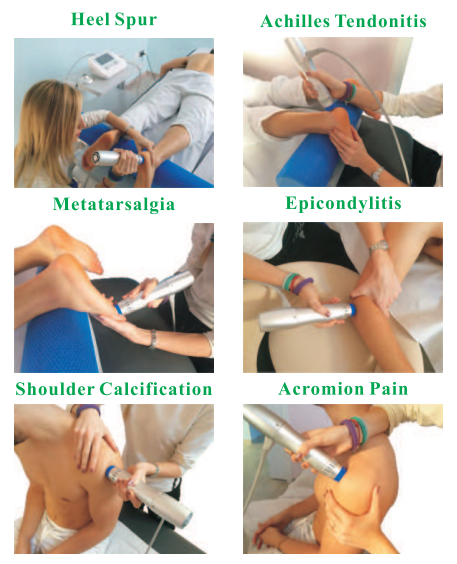

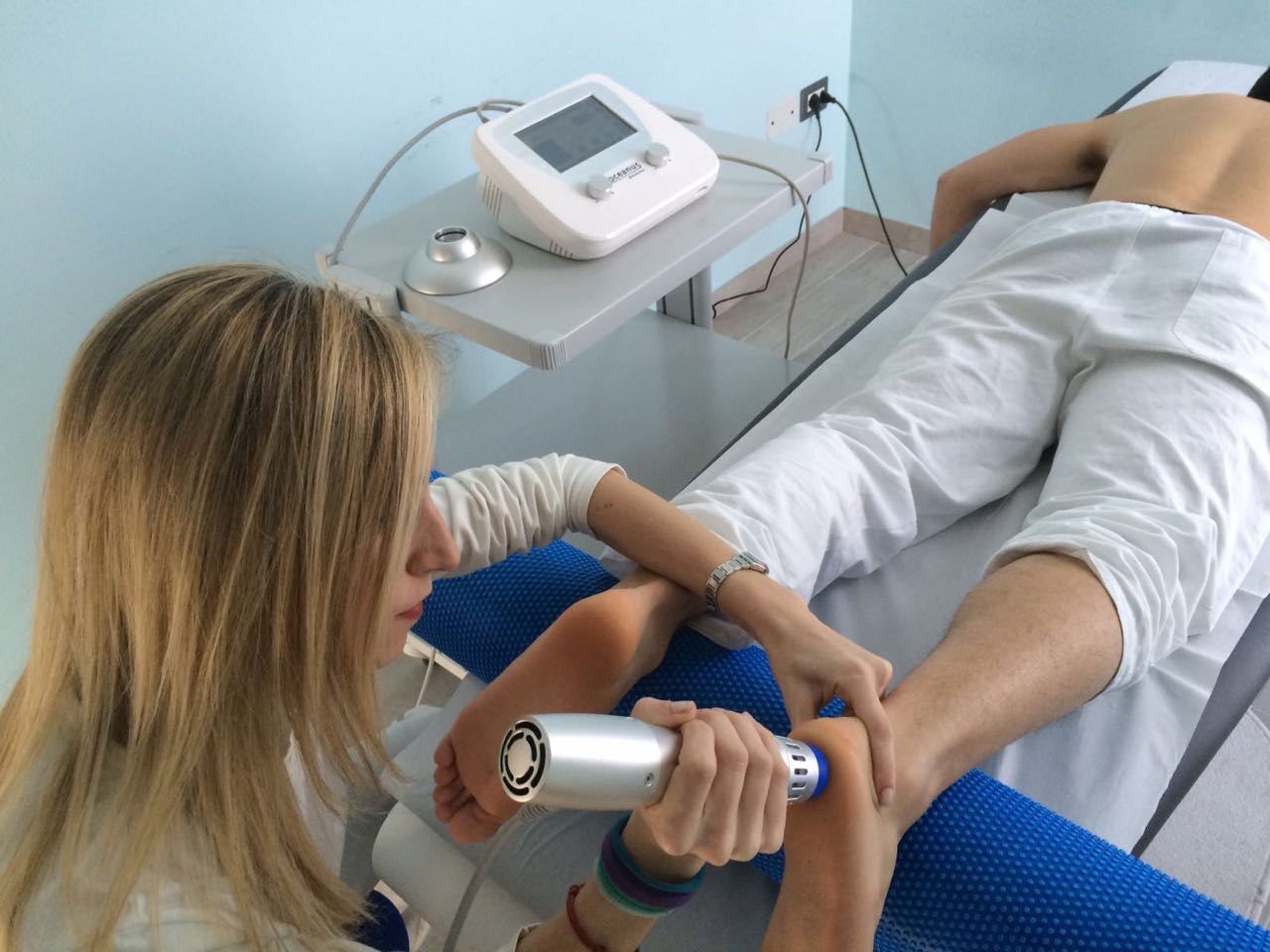

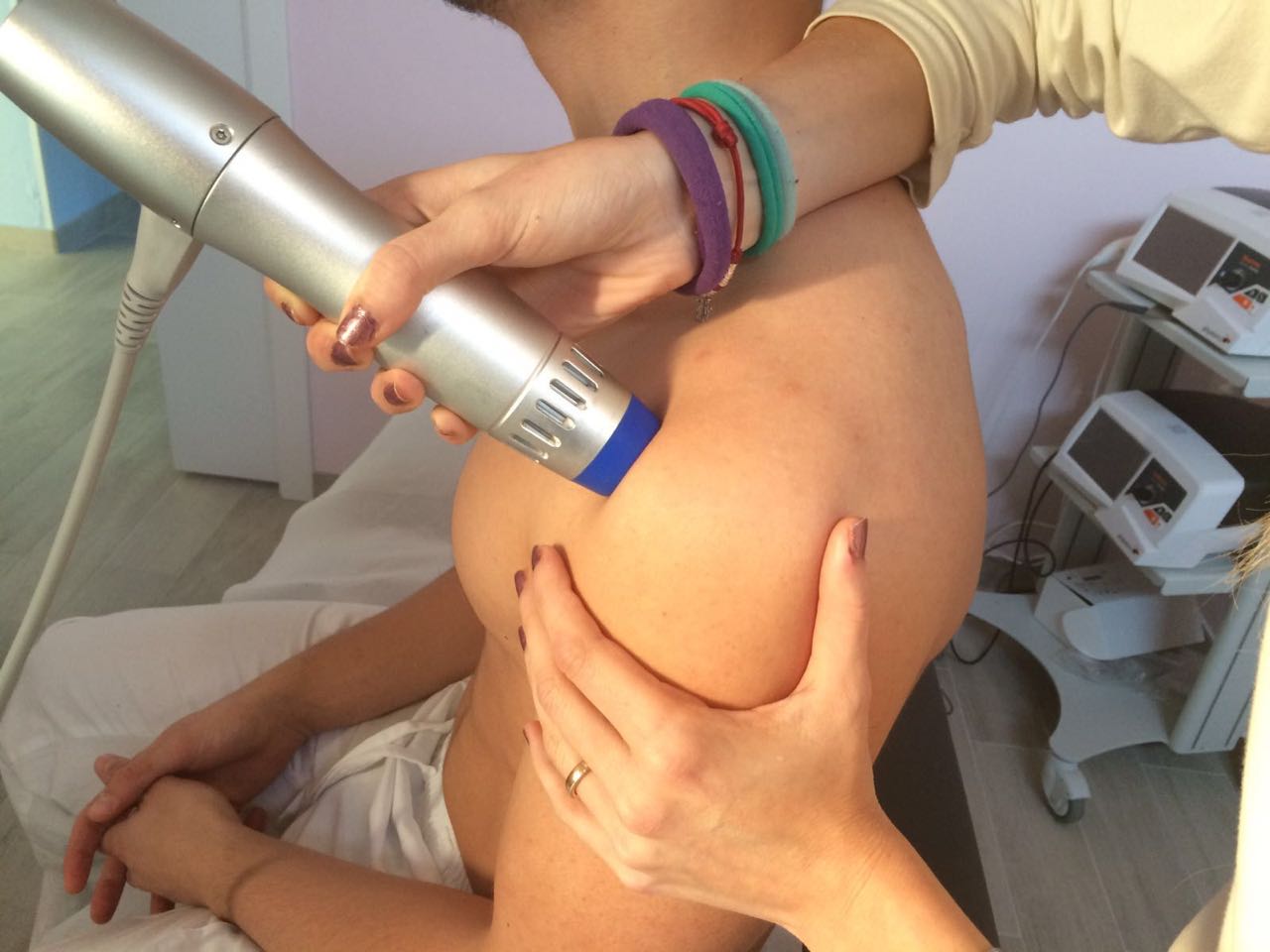

Applications
Technical Specifications

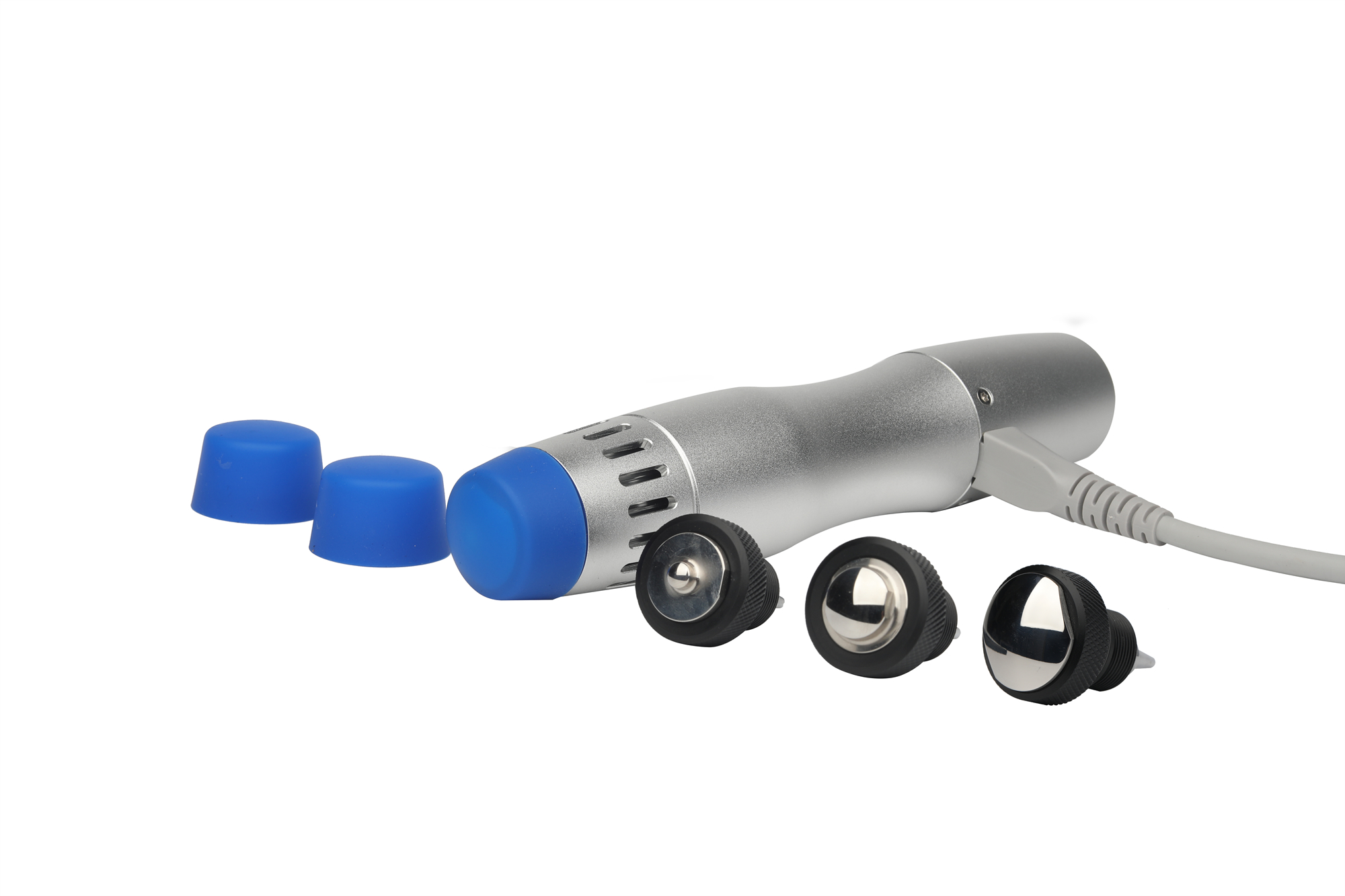

Power Levels/Energy 10-185mj (equivalent to 0.1-5bar) Frequency 1-22HZ Modes4 burst modes(continuous/4/8/12 shocks) Programmes 7 present programmes, adjustable ProtocolsMore than 25 illustrated preset treatment recommendations Controls Colour touch-screen fr all software operations Applicatiors 6/15/25mm(35mm as option ) Life Time Minimum 4,000,000 shocks per handpiece, 300,000 shocks per head Dimensions290x240x130mm(L/W/H) Weight 2.07kg (controller unit only)
Warranty 3 years for controller unit, 1 year for accessories
