• 1 & 3 MHz ultrasound frequency
• Pulsed & continuous modes
• Varied therapy programs
• All treatment modes are settable

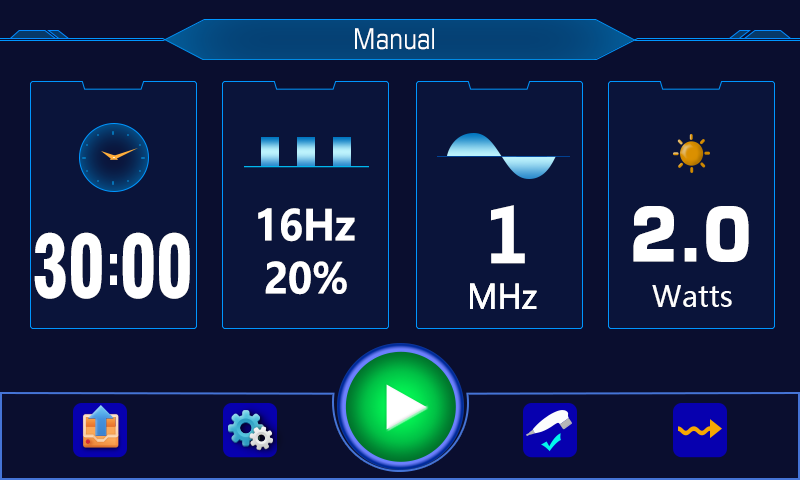

Operation Menu
Indications
• Treatment of Pain
• Muscle Spasm
• Joint Contracture Relief
• Limb Dyskinesia
• Soft Tissue Contusion
Features
• Varied therapy programs
• All treatment modes are settable
• 7.0'' touch screen
• 2 control knob with light indicator
• 1 & 3 MHz ultrasound frequency
• Pulsed & continuous modes
• Waterproof factor of ultrasound head
Technical Specifications
Frequency 1MHz / 3MHz
Max Intensity 3W/cm2
Work mode Continuous / Pulsed
Frequency 16Hz/48Hz/100Hz
Pulse duty factor 10-90%, stepping 10%
RBN <8.0
Ultrasound head 5cm2 (1cm2 / 2cm2 as option)
Dimension 290×240×130mm (device)
Gross weight 2 KG
