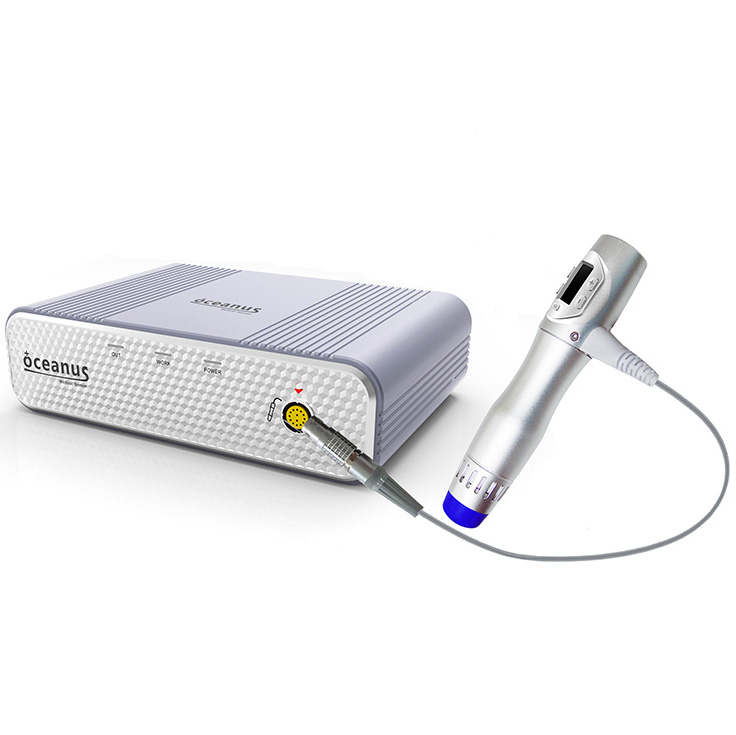

OCE-ESWT-003
    Publish time 2014-10-13 13:53
System Features & Benefits

Small Volume

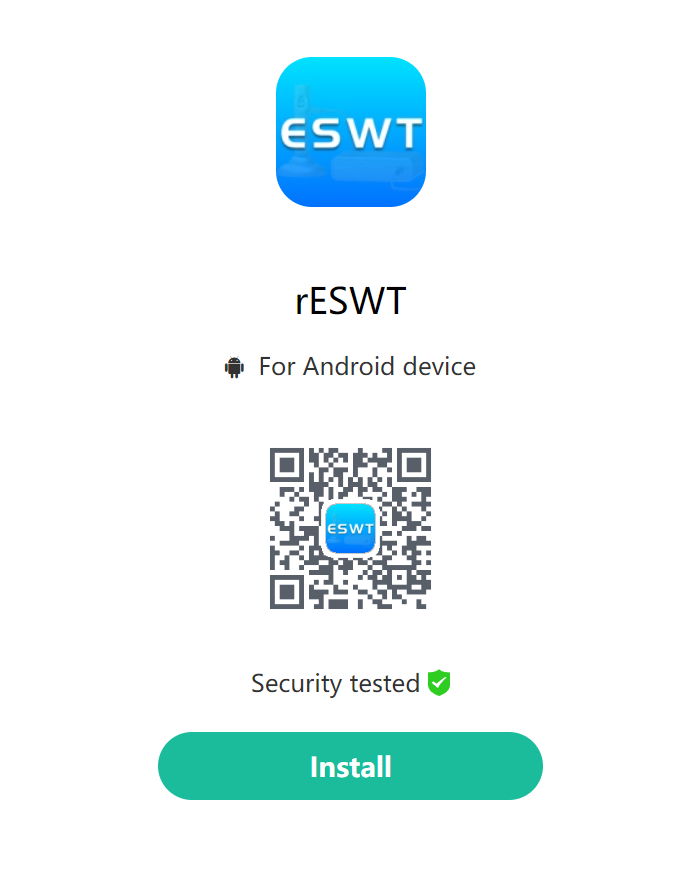

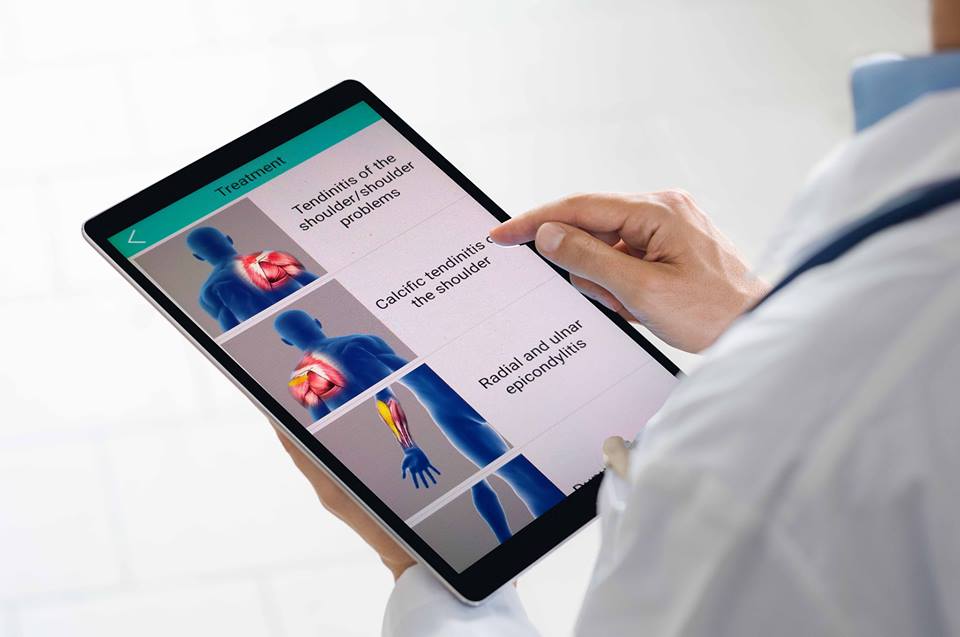

Apps on Android & IOS
User friendly and reliable
No air compressor,low maintenance cost
Easy of use

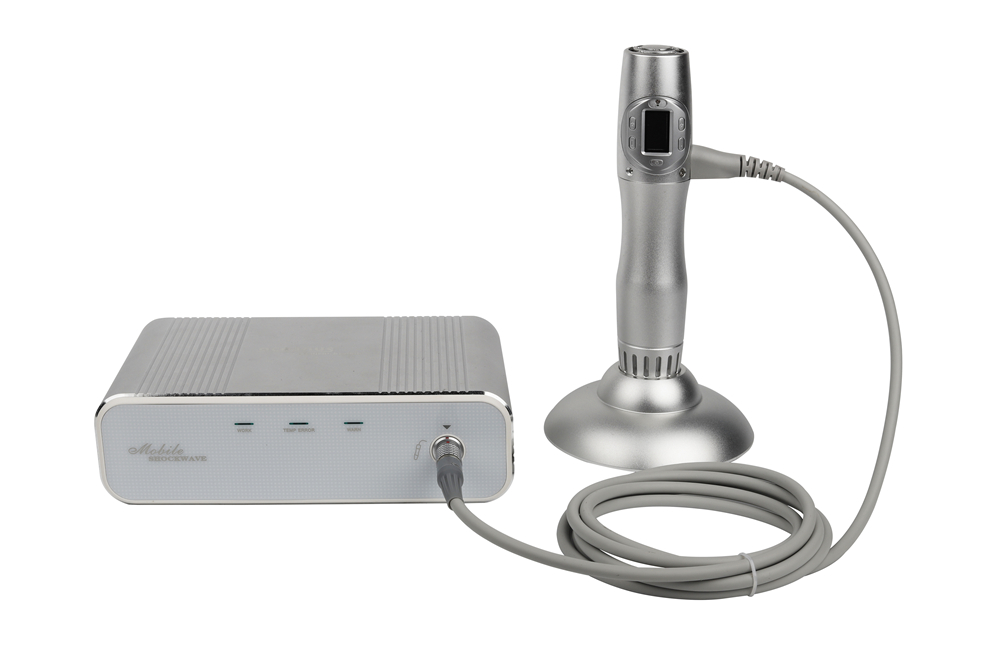

The World's Smallest Shockwave Therapy Device!

The Mobile type is a new sub-series of the currently Portable type shockwave therapy device(OCE-ESWT-001/002
).
Only 1/3 volume compared to the Portable type, more convenient to carry, suitable for Home Care, Sports Team and Community Hospital etc.


System Features &
Benefits

  • Small Volume
  • Apps on Android & IOS
  • User friendly and reliable
  • No air compressor,low maintenance cost
  • Easy of use

Indications
  • Physiotherapy
  • Rehabilitation
  • Sports medicine
  • Home care
  • Community hospital

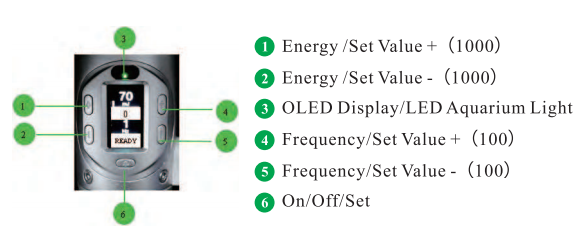

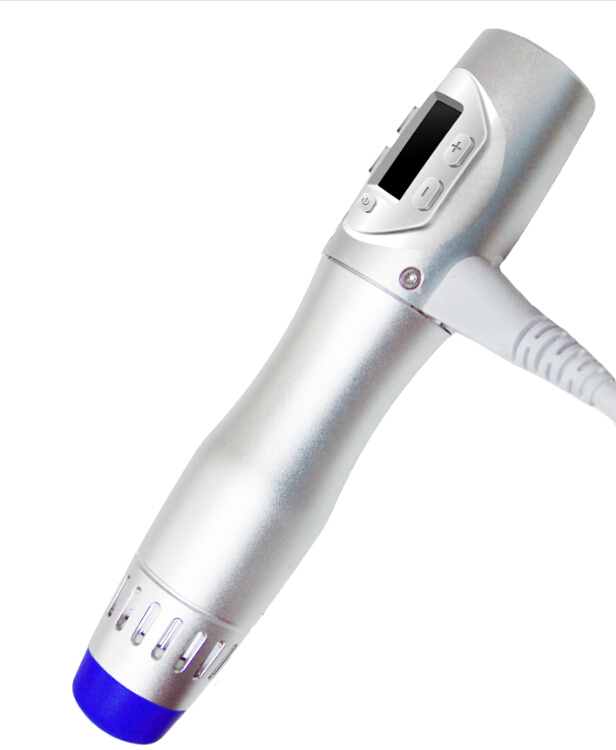

Operate on handle directly





Specifications

Type

Mobile model

Technology

Compressor free ballistic radial shockwave therapy-system with electromagnetic generator as projectile accelerator

Power Levels / Energy

60 to 185 mJ (equivalent to 1-5 bar)

Frequency

1-22 Hz

Display

OLED display on handle

Controls

Operate on handle or via bluetooth

Applicators

6/15/25mm

Life time

Minimum warranty of 2,000,000 shocks per handpiece

Minimum warranty of 150,000 shocks per applicator head

Dimensions

300×240×180mm(main engine), 410×300×180mm(carton)

Gross Weight

8kg

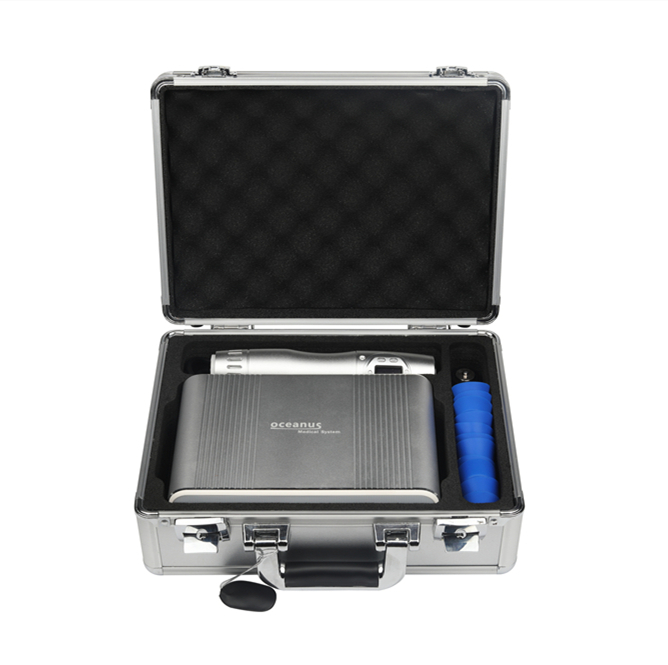

Package

Aluminum Carrying Case

Warranty

3 years for controller unit and 1 year for accessories

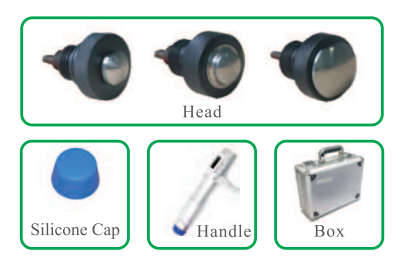

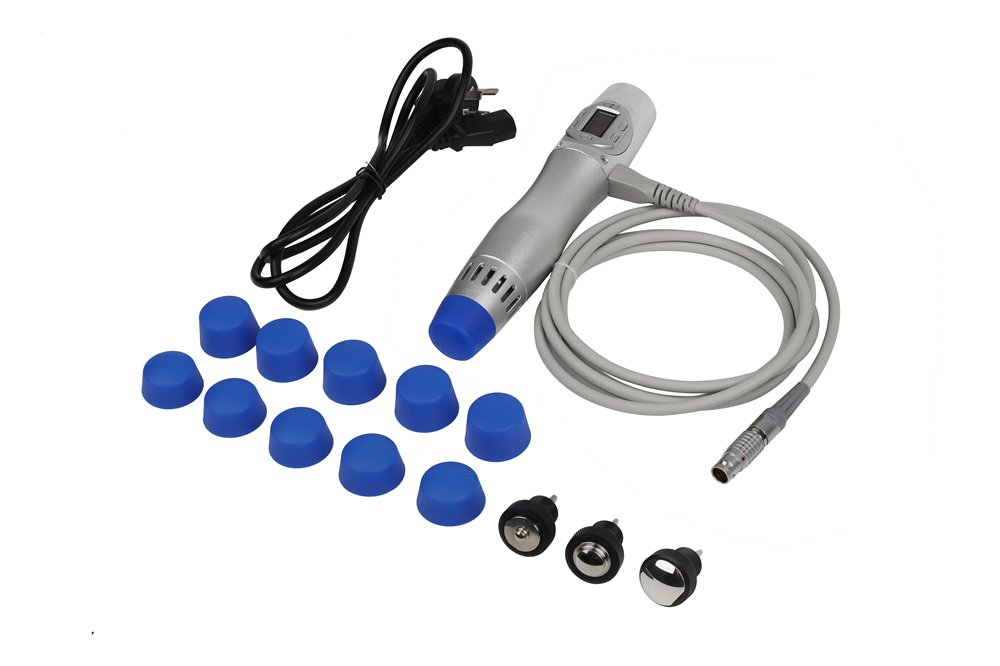

Standard Accessories

Ordering code

Description

Quantity / pc

OCE001010101Z

Therapeutic handle

1

OCE001010101Z-07

6mm Therapeutic head

1

OCE001010101Z-08

15mm Therapeutic head

1

OCE001010101Z-09

25mm Therapeutic head

1

OCE00102040001

Power line

1

OCE001010101Z-06

Silicone cap

10

OCE00103040101

Aluminium alloy suitcase

1
