• Frequency 448 kHz
• Output power in RES mode 100 W
• Output power in CAP mode 350 VA
• CAP/RES electrodes
Indications
• Traumatic injuries
• Sports physiotherapy
• Tendinopathy (Achilles, shoulder)
• Osteoarthritis
• Promoting fracture healing
• Joint injuries
Features
• 7.0'' Color Touch Screen
• Monopolar radio frequency CAP/RES
• Frequency 448 kHz
• Output power in RES mode 100 W
• Output power in CAP mode 350 VA
• CAP/RES electrodes

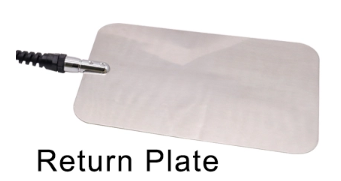

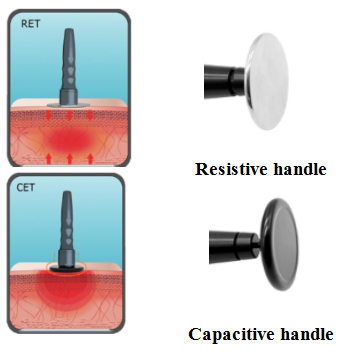

RET CET RF combined Return Plate to be Circuit loop, electric circulation through the resistive medium formed by the live tissues increases its temperature
Technical Specifications
Frequency RES 448 kHz
Frequency CAP 390 kHz -449 kHz
Output power in RES mode 100V, 100W
Output power in CAP mode 630V , 350VA

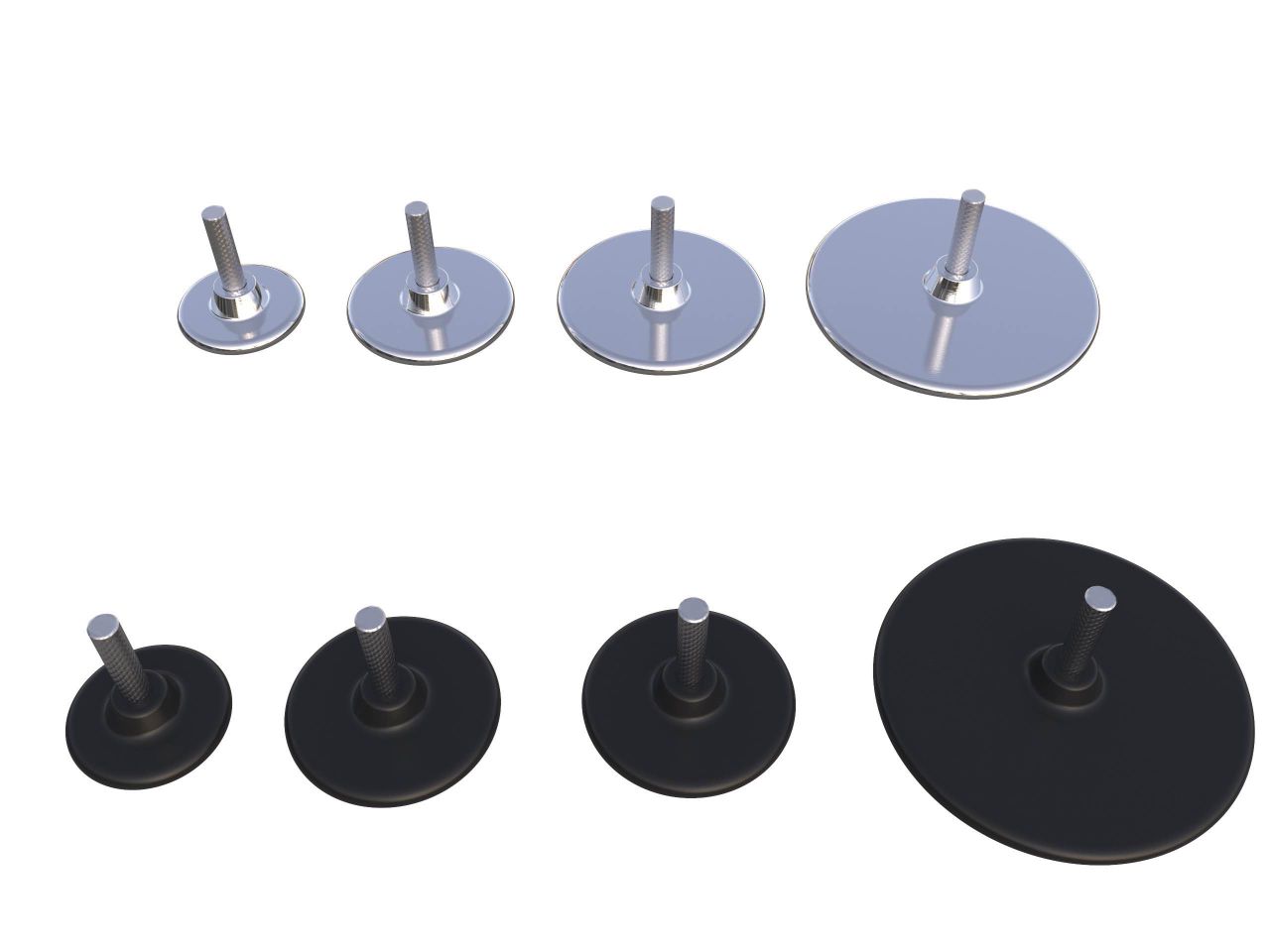

Capacitive electrode 30/40/50/70mm
Resistive electrode 30/40/50/70mm
Input power AC 100-240v; 50Hz/60Hz
Warranty 2 years
Dimensions 420× 320x130mm(L/W/H)
Weight 6Kg
